The ConsoliDator+ is a multi-channel controller that is both easy to use and satisfies a wide variety of process display, alarm and control applications. It accepts 4-20 mA inputs, flow meter pulse inputs, digital inputs, and Modbus RTU inputs and displays them both in numeric and bargraph format on a large, 5.7" color display. It can be equipped with multiple relays with user-definable actions, 4-20 mA outputs, digital outputs, Modbus RTU, and Ethernet Modbus TCP/IP protocol communication capabilities. Additionally, the controller is equipped with up to 32 timers that can be used to control many processes or events.

• NEMA 4X Panel Mount Multi-Channel Controller
• Convenient Display, Control, & Alarm of Multiple 4-20 mA & Pulse Inputs
• Numeric & Bargraph Color Display (320 x 240 px) 5.7" (145 mm)
• Sunlight Readable Display, White Backlight
• Isolated 24 VDC Transmitter Supplies 200 mA / Analog Input; 1,600 mA Max
• 99 Channels, 32 Totalizers, 32 Timers, & 199 Modbus Slave Inputs
• 64 High & Low Alarms, Combine Multiple Alarms Into Logic AND & OR Alarms
• Simulation & Manual Control Modes for Testing Setup
• Modular Design for Input & Output Flexibility
• Up to (28) 4-20 mA Isolated Inputs or Pulse Inputs
• Up to (25) 10 Amp Form C Relays (With Eight Analog or Pulse Inputs)
• Up to (25) Isolated 4-20 mA Outputs (With Eight Analog or Pulse Inputs)
• Operating Temperature Range: -40 to 60°C (-40 to 140°F)
• Pulse, Analog, & Modbus Input Flow Rate / Total / Grand Total Capability
• 50-Point Linearization, Square Root, and Exponent for Open Channel Flow
• Round Horizontal Tank Volume Calculation; Just Enter Diameter & Length
• Multi-Pump Alternation Control or Simple On / Off Control
• Programmable Displays, Function Keys & Digital Inputs
• Math Functions: Sum, Diff, Average, Multiply, Divide, % Efficiency, & More
• Direct Modbus PV Inputs - Slave Mode
• Customize Modbus Outputs to Read Multiple Registers in One Block
• RS-485 Serial Communication with Modbus RTU
• Field Selectable Input Power: 85-264 VAC or 24 VDC
• (20) Screens with up to Eight PVs Each
• Automatic or Manual Scanning
• ConsoliDator+ Configuration Software
• NEMA 4 Field Mount Enclosure Accessory
• Light / Horn & Control Station Accessory for Remote Operation

The Precision Digital PDW30 gives you a simple, straightforward way to get an analog, discrete, or Modbus® signal from where you have it to where you need it. It's a point-to-point wireless bridge packaged in a rugged, weather-tight housing that is designed to meet the demands of industrial installations.

• Signal Wire Replacement in a Rugged, Industrial Housing
• Inputs and Outputs on Both Field Units
• Simple to Order, Configure, & Install
• 1 Mile Line-of-Sight Outdoor, 500 Feet Indoor Range
• Inputs: Analog (4-20 mA, 0-10 V, 0-5 V, 1-5 V), Digital, and RS-485 Modbus® Communications
• Outputs: Analog (4-20 mA), Digital, and RS-485 Modbus® Communications
• Remote or Attached Antenna
• Repeaters and Directional Antennas Available
• Flanges for Wall or Pipe Mounting
• Software Available for Even Easier Setup
• NEMA 4X, IP68 Enclosure

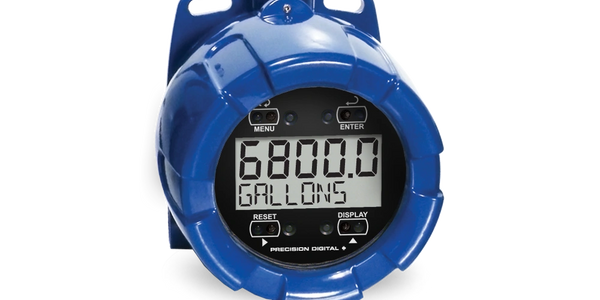

The ProtEX-Pro PD6800 is one of Precision Digital's most advanced and feature-packed explosion-proof, loop-powered indicators. The fact that this meter is loop-powered means that there is no need to run additional, costly power lines into a hazardous area. Like all ProtEX products, the PD6800 carries FM, CSA, ATEX, and IECEx approvals for use in hazardous areas. It features a dual-line display that can be easily scaled in the field for any 4-20 mA analog input. The display has a five digit upper display, a seven alpha-numeric character lower display, and is available with a twenty-segment bar graph for level applications. Two features that really make the PD6800 stand out are its wide viewing angle display and SafeTouch® through-glass buttons. These buttons allow the PD6800 to be programmed and operated through the glass, thus eliminating the need to remove the cover in a hazardous area

• 4-20 mA Input Loop-Powered
• Modern, Sleek and Practical Enclosure for Hazardous Locations
• 5-Digit, 0.7" (17.8 mm) Upper Display (0.6" for -0L1 Models)
• Optional Level Indicator Bar Graph
• 7 Alphanumeric Character, 0.4" (10.2 mm) Lower Display
• SafeTouch® Through-Glass Button Programming
• Password Protection
• 32-Point , Square Root, or Exponential Linearization
• Loop or External DC-Powered Backlight Standard
• 3.0 V Drop (6.0 V with Backlight)
• Explosion-Proof, IP68, NEMA 4X Enclosure
• Flanges for Wall or Pipe Mounting
• HART Protocol Transparent
• Operates from -40 to 75°C
